Outside
External dimensions using the main measuring jaws.

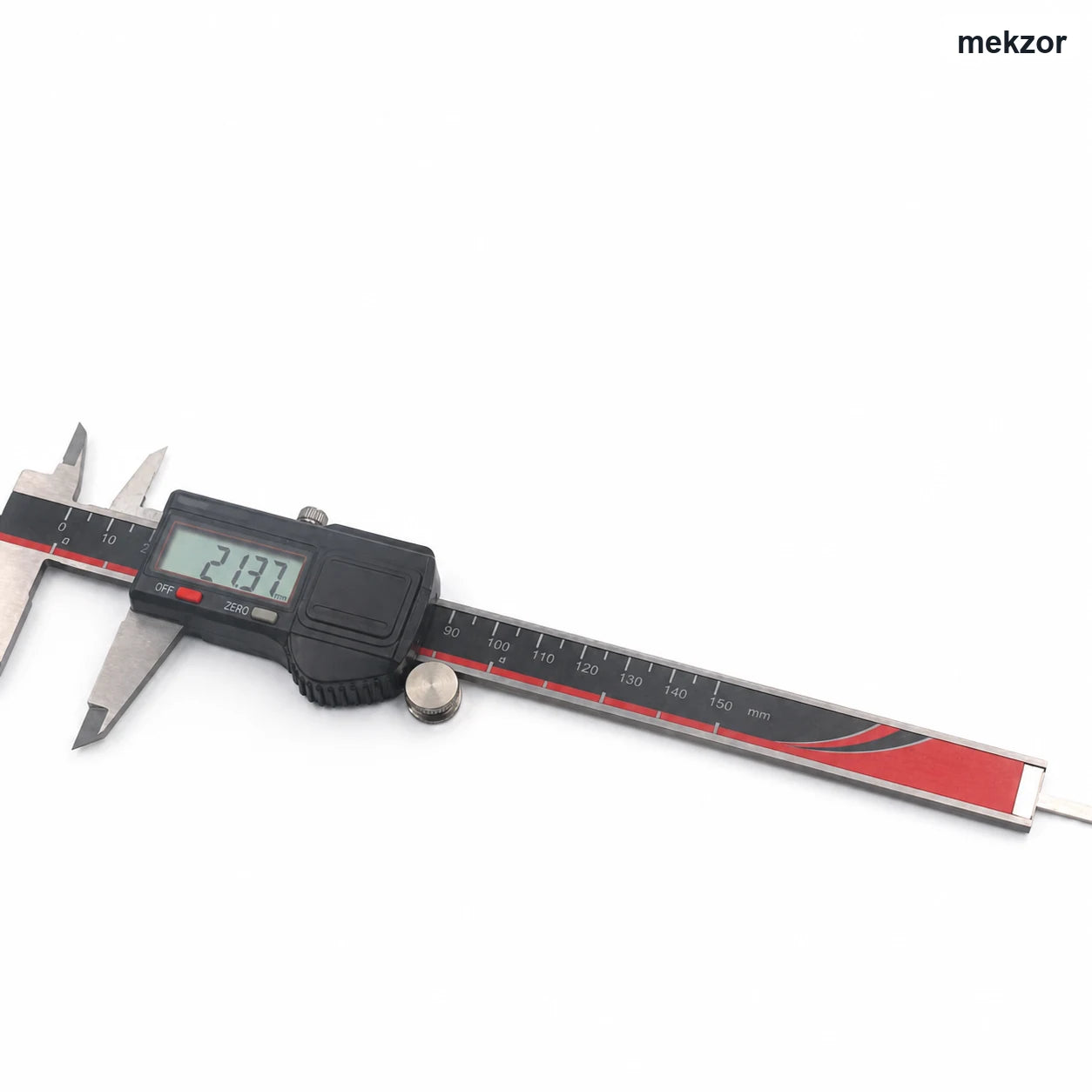

Digital precision caliper
Measure with clarity. Adjust with control.
A 0–150 mm stainless steel digital caliper with a large LCD, 0.01 mm resolution, mm/inch conversion and four essential measurement modes.
0–150 mmMeasuring range
0.01 mmResolution
±0.03 mmAccuracy
mm / inch
instant conversion
instant conversion
4Cr13Stainless steel body material
Large LCDClear digital readings
ZEROSet zero at any position
4 modesOutside · Inside · Depth · Step

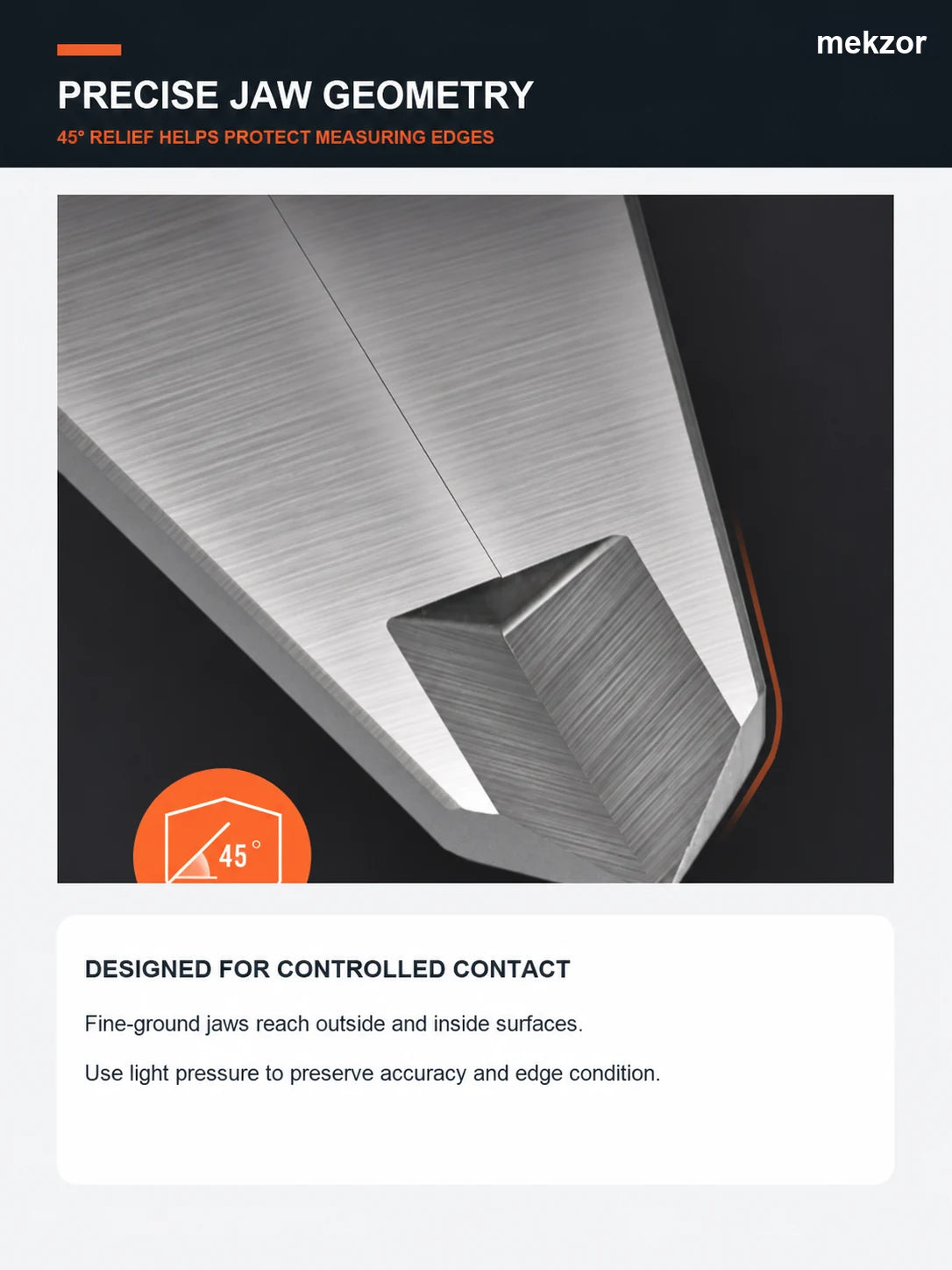

Controlled contact
Jaw geometry built for repeatable positioning
The measuring faces, relief profile and thumb-controlled slide are presented as a coordinated system for careful dimensional work.
- Fine-ground jaws support stable, controlled contact.
- A 45° relief profile supports controlled contact at the measuring jaw.
- Hardened stainless steel jaws provide a durable measuring surface.
Outside measurementMeasure external dimensions with the main jaws.
Inside measurementUse the upper jaws for internal dimensions.

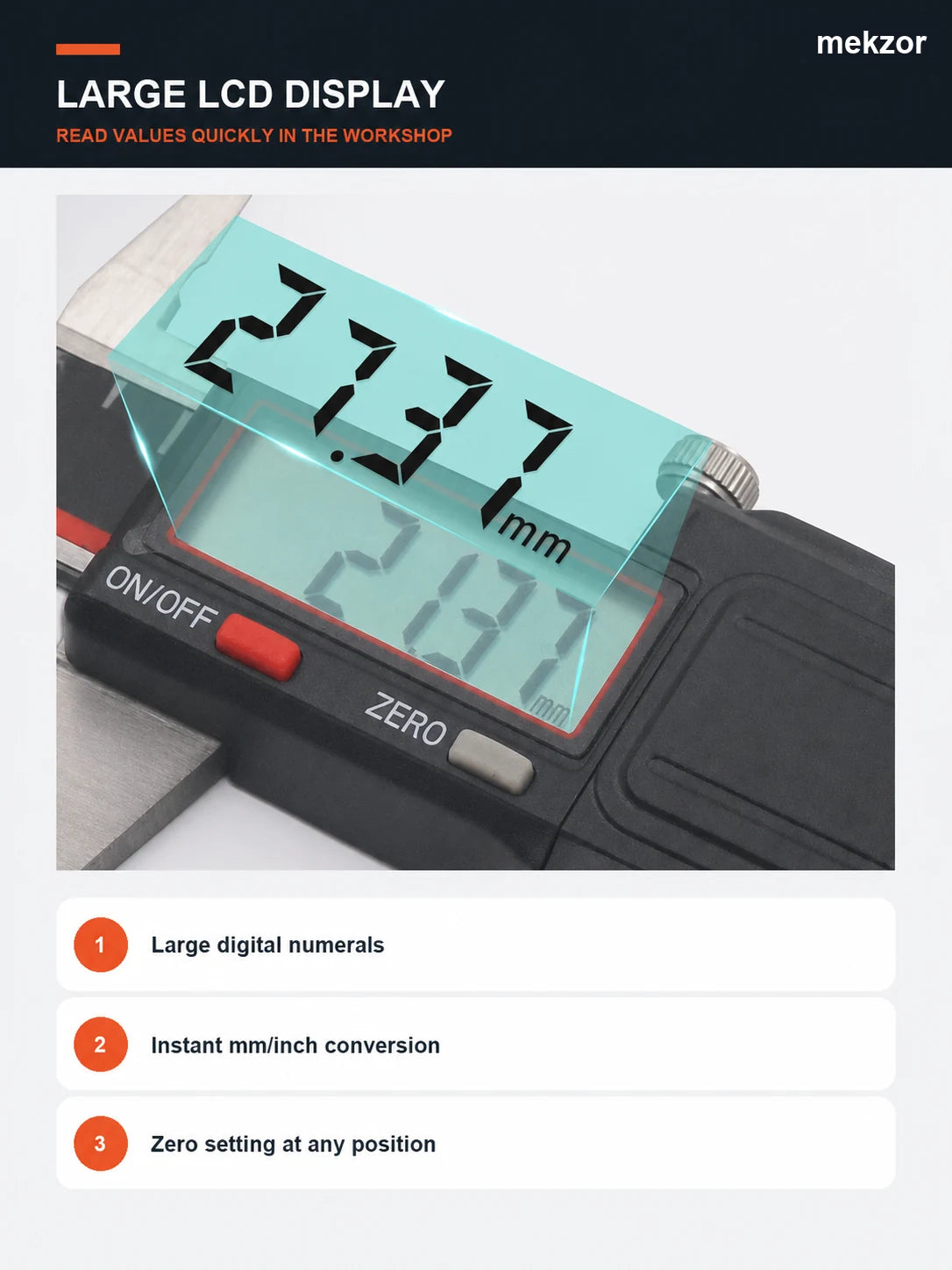

Large LCD display
Read the measurement without breaking your workflow.
Dedicated ON/OFF, MM/INCH and ZERO controls sit beside a large numeric display.
mm / inchInstant unit conversion
ZEROZero setting at any position
0.01 mmMetric resolution
0.0005 inInch resolution
Four measurement modes
One caliper. Four essential ways to measure.
Measure outside, inside, depth and step dimensions with one compact tool.
Inside
Internal dimensions using the upper measuring jaws.

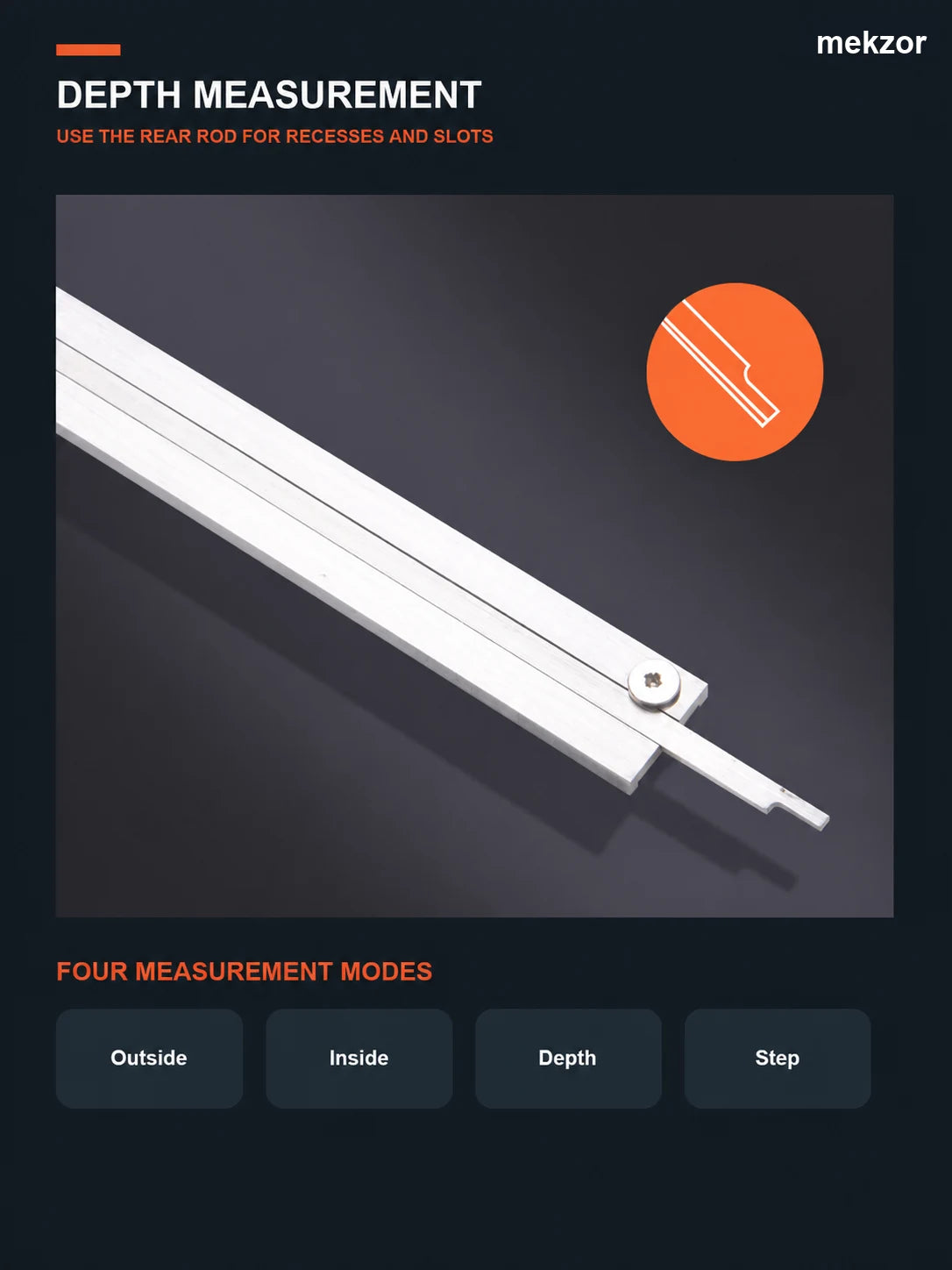

Depth
Depth measurement using the extending depth blade.
Step
Step measurement using the caliper body and sliding beam.

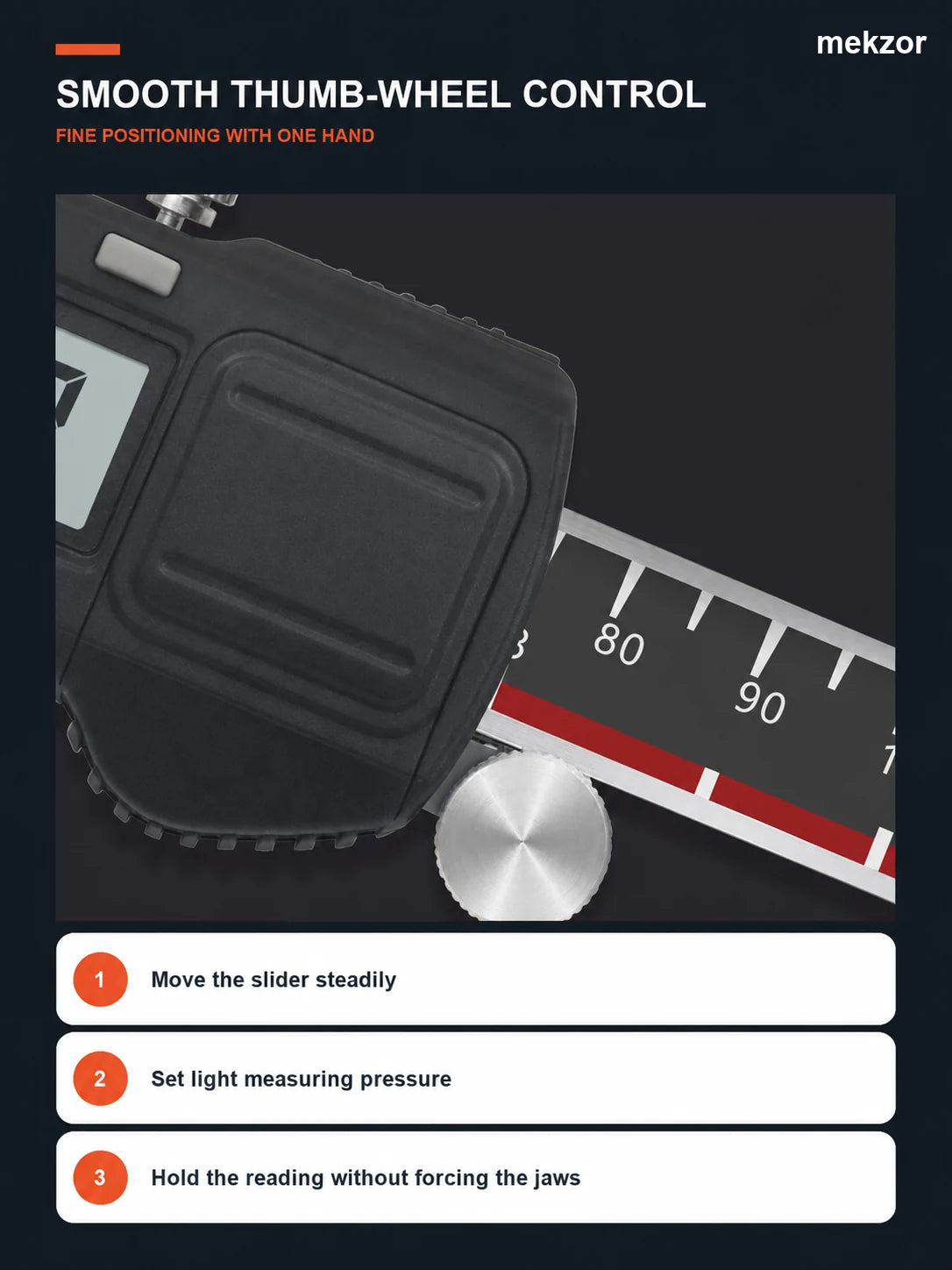

Fine adjustment
Smooth thumb-wheel control for deliberate positioning.
The thumb wheel is designed to move the slider steadily, set light measuring pressure and hold the reading while bringing the jaws into position.
- Move the slider steadily.
- Set light measuring pressure.
- Hold the reading without forcing the jaws.

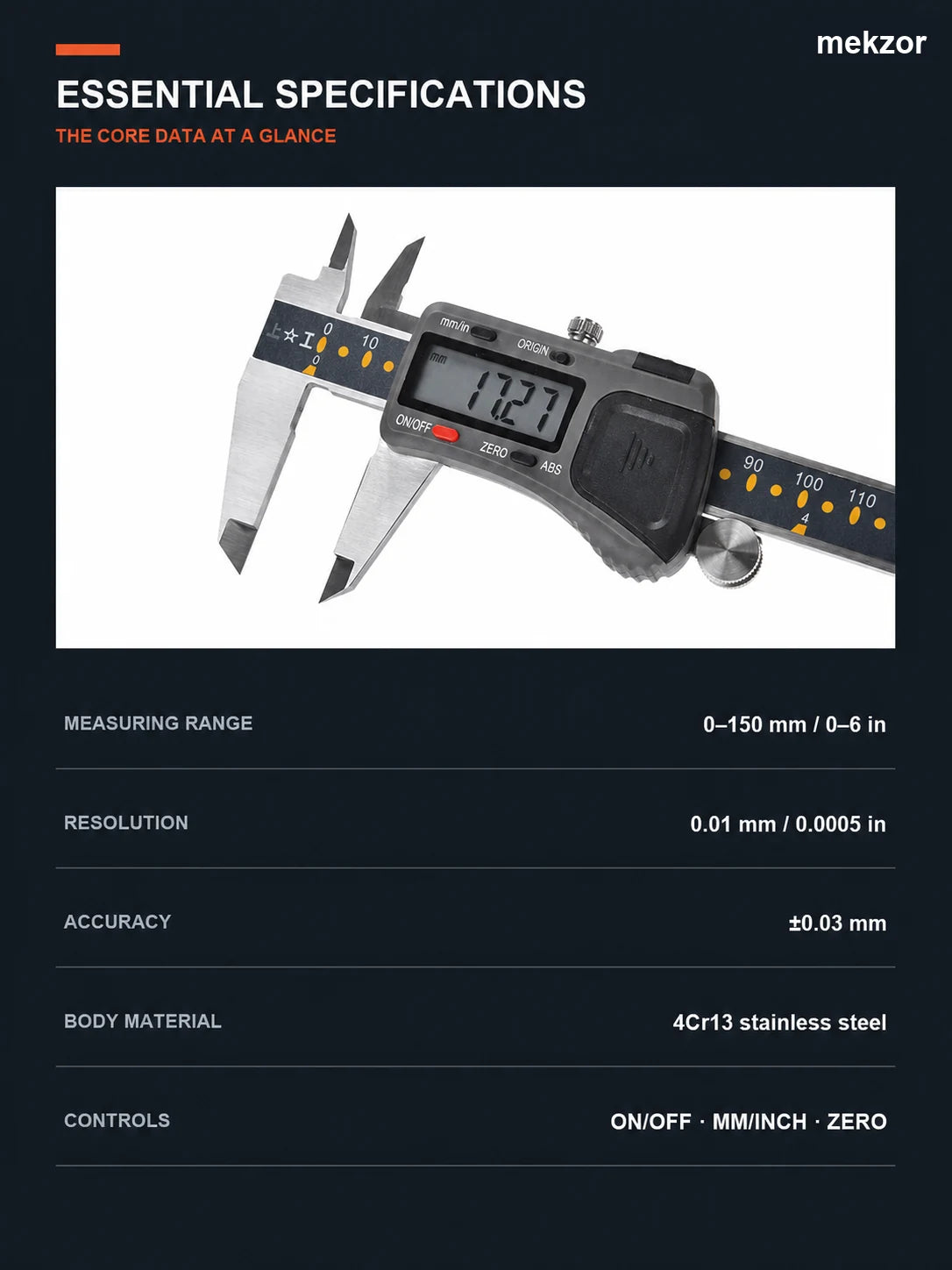

Essential specifications
The core numbers at a glance.
Measuring range0–150 mm / 0–6 in
Resolution0.01 mm / 0.0005 in
Accuracy±0.03 mm
Body material4Cr13 stainless steel
ControlsON/OFF · MM/INCH · ZERO
IncludedCaliper + fitted protective case
A compact specification set for everyday dimensional checks and workshop use.

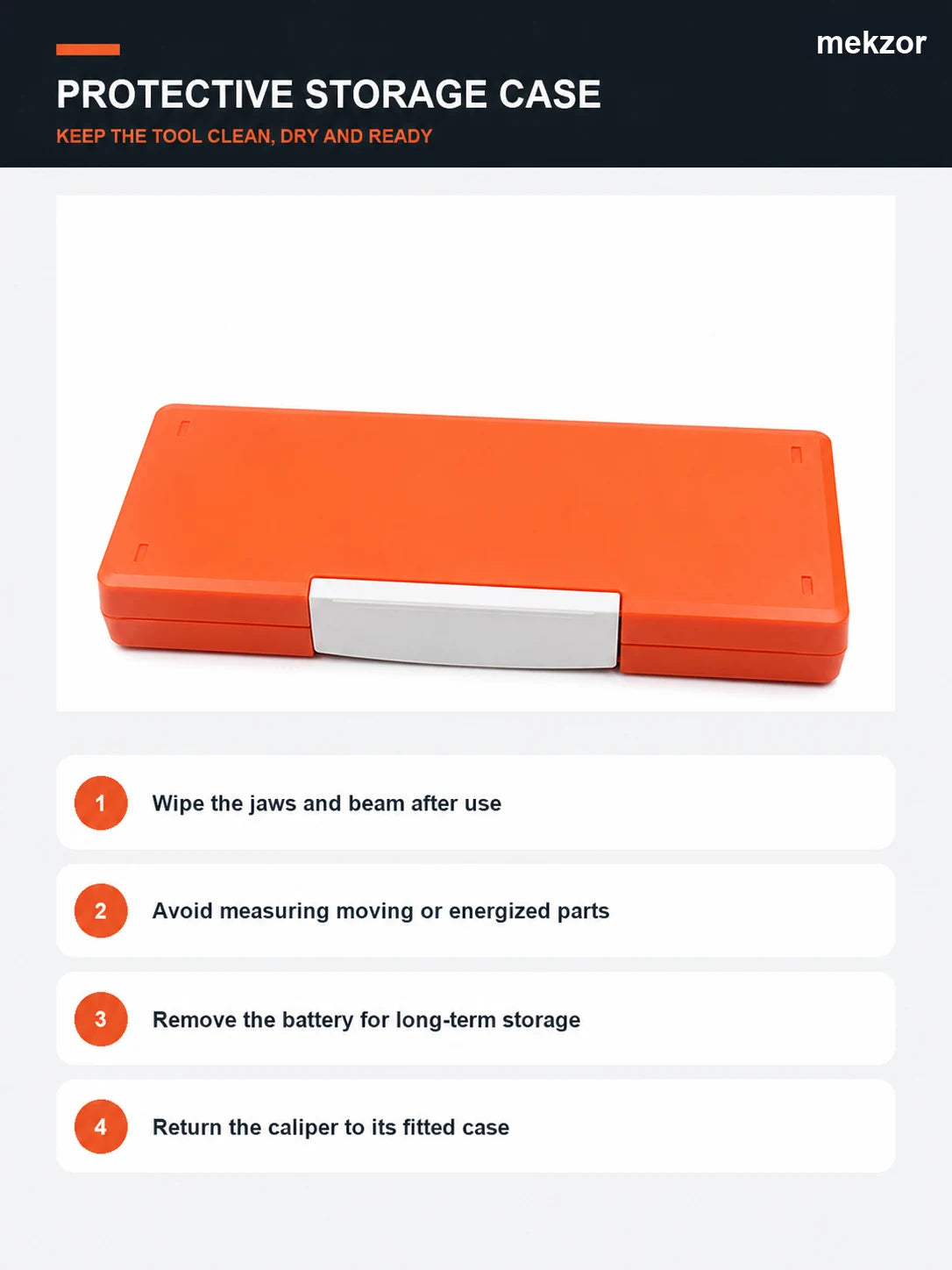

Protective storage case
Keep the tool clean, dry and ready.
The fitted case helps keep the caliper protected between measurements and during storage.
01
Wipe the jaws and beam after use.
02
Avoid measuring moving or energized parts.
03
Remove the battery for long-term storage.
04
Return the caliper to its fitted case.
MEKZOR precision tool
MEKZOR 0-150 mm Stainless Steel Digital Caliper – Large LCD Precision Measuring Tool
Large LCD, 0.01 mm resolution, ±0.03 mm accuracy, mm/inch conversion and four measurement modes. Includes a fitted protective case.
€79,00
What measuring range does the caliper cover?
0–150 mm, also shown as 0–6 inches.
What is the stated resolution and accuracy?
Resolution is 0.01 mm / 0.0005 in. The stated accuracy is ±0.03 mm.
Can it switch between millimeters and inches?
Yes. A dedicated MM/INCH control switches between millimeters and inches.
Which measurement modes are supported?
The caliper supports outside, inside, depth and step measurements.
Can the display be zeroed after moving the slider?
Yes. The ZERO control allows zero setting at any position.
What is included?
The digital caliper and a fitted protective storage case are included.
